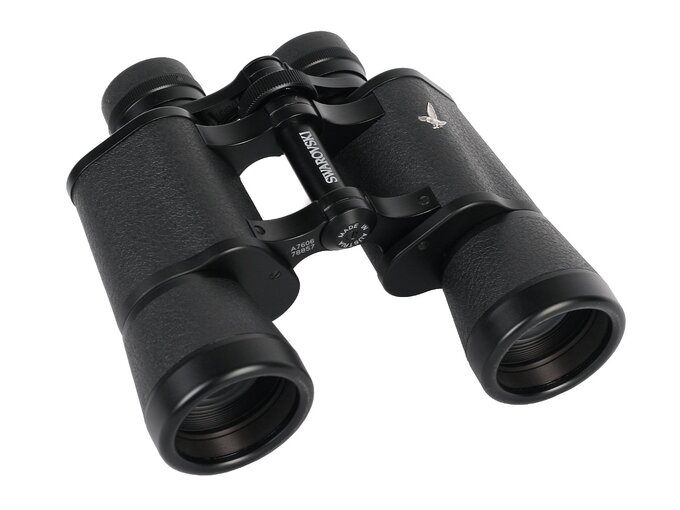

Swarovski Habicht 10x40 W

Swarovski Habicht 10x40 W
24 January 2010
Optyczne.pl
The Swarovski company doesn’t have to be introduced. For several dozen years it has belonged to the world’s top manufacturers of binoculars and spotting scopes. Its products are aimed mainly at hunters but they are also a great help to astronomers, ornithologists and ordinary tourists. The Habicht series, tested here, includes classic porro-prismatic models with the following parameters: 8x30, 7x42 and 10x40. Their mechanical-optical construction comes from the 40s of the twentieth century. Of course the quality of materials has changed since then. Among other things the highest class SWAROTOP and SWARDOUR coatings with reinforced durability were used (according to the producer after using these coatings the light losses on ona air-to- glass surface don’t exceed 0.2%), the highest quality BaK-4 glass in prisms and additionally, the device was filled with nitrogen.

The 10x42 model sports eyepieces with as many as 6 elements which ensure a wide field of view and small dimensions of the whole instrument at the same time. We also get a classic 2-element objective lens.

The binoculars can work in the – 25 to +55 degrees C temperature range and be stored without any damage from –30 to +70 decrees C. They are splash-proof.

Pictures
  • Lornetka Swarovski Habicht 10x40 W
  • Lornetka Swarovski Habicht 10x40 W
  • Lornetka Swarovski Habicht 10x40 W
  • Lornetka Swarovski Habicht 10x40 W
Manufacturer data

Manufacturer:

Swarovski
web site

Distribution / Sales:

Hubertus Pro Hunting
web site

Magnification Lens diameter Angular field of view Prisms Eye relief Weight Price
10 40 108/1000(6.2o) BaK-4/Porro 13 mm 690 g 3200 PLN
Results of the review
Real front lens diameter Left:   40+/- 0.05 mm
Right:  40+/- 0.05 mm
8 / 8.0 pkt
Real magnification 10.5+/- 0.3x 2.5/3.0
Transmission 90+/- 3% 13/15.0
Chromatic aberration Low in the centre and at the edge. 8.5/10.0
Astigmatism Low. 7.9/10.0
Distortion The distance of the first curved line from the field centre compared to the field of vision radius: 40% +\- 5% 4/10.0
Coma Low. 6.9/10.0
Blurring at the edge of the FOV The blur occurs in the distance of 77% +\- 3% from the field of view centre. 5/10.0
Darkening at the edge the FOV Very slight. 4.8/5.0
Whiteness of the image Perfect! 5/5.0
Collimation Exemplary. 5/5.0
Internal reflections
Left: Right:
Swarovski Habicht 10x40 W - Internal reflections - Left Swarovski Habicht 10x40 W - Internal reflections - Right
Distinct and clear.
2/5.0
Housing A classic! Beautiful, light and handy. Too small and not regulated eyecups are a flaw because you just “fall into the image” with your eyes. There are no caps for the objectives included. 6.1/8.0
Focusing Quite narrow metal central screw whith a 480 degrees full turn. Comfortable work on the right objective. The bridge is stable, the objectives don’t move sideways. 4.2/5.0
Tripod There is a pipe to attach connector in the middle. 1/3.0
Interpupilary distance from 47 to 75.8mm 6/6.0
Closest focusing distance 3.0 m. 1/2.0
Eyepieces FOV Apparent field of view of 66 degrees. 8/10.0
Field of view Measured by us amounted to 6.28 +\- 0.03 degrees and was wider than in the specifications. 6.5/8.0
Quality of the interior of the barrels Black and perfectly matt inner tube. Gray bottom but not very visible. Very clean! 5/5.0
Vignetting
Left: Right:
Swarovski Habicht 10x40 W - Vignetting - Left Swarovski Habicht 10x40 W - Vignetting - Right
Truncated exit pupils.
OL: 2.9%, OR: 1.5%.
4.5/8.0
Prisms quality High quality BaK-4. 8/8.0
Antireflection coatings Green-pink on objectives and prisms. Orange-green-pink on eyepieces. Low intensity. 5/5.0
Warranty [years] 30 5/6.0
Final result
78.2%
16th place in the overall ranking of the 10x42 binoculars test
132.9 / 170 pkt
Econo result 40th place in the econo ranking of the 10x42 binoculars test. -2.4pkt.

Summary

Pros:
  • light, compact, handy and very stylish housing,
  • wide field of view,
  • perfect whiteness rendition,
  • chromatic aberration well corrected,
  • low astigmatism,
  • slight coma,
  • excellent quality of coatings and prisms,
  • negligible light fall-off at the edge of the field,
  • good transmission,
  • long warranty period.

Cons:
  • truncated pupils,
  • visible flares near the pupils,
  • distortion a bit too high,
  • very small eyecups which make the binoculars fall into your eyes.


This text won’t be impartial at all because I must admit I am simply in love with the look of these binoculars, the way they lie in your hand, the way they smell… It is the classic look epitomized – just beautiful.

Writing here about too small eyecups, too high distortion or truncated pupils is like demanding from a 1966 Ford Mustang to comply with the contemporary requirements for emission of exhaustion fumes and to do 100 kilometers to five litres. It’s not possible for the obvious reasons. For as obvious reasons the 60-year-old Habicht construction won’t correct the distortion well and won’t have a field of view sharp to the very edge but it is not the point, after all…

Have I already mentioned that this set of binoculars is beautiful? I think not. Let’s say it, then. It is beautiful!

P.S. The binoculars are really beautiful!
